Holes for getting wire from wings to fuselage

15 Dec 2005 Holes for getting wire from wings to fuselage

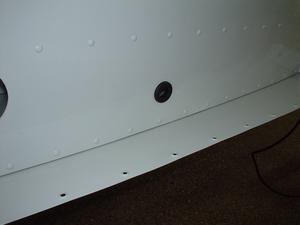

I drilled the holes to allow the conduit in the wings to come into the fuselage. This was tricky since I had to measure pretty precisely the location. Of course, if I’m off a bit it should not be too big of a deal, since the conduit is kind of flexible. The conduit will penetrate about 2-3 inches into the fuselage. I have a rubber grommet protecting the conduit where it enters the fuselage. The hole was about 7/8″.

Hey, how did he get into that picture?

Left side.

Right side.
