Ground point on firewall

09 Apr Ground point on firewall

print

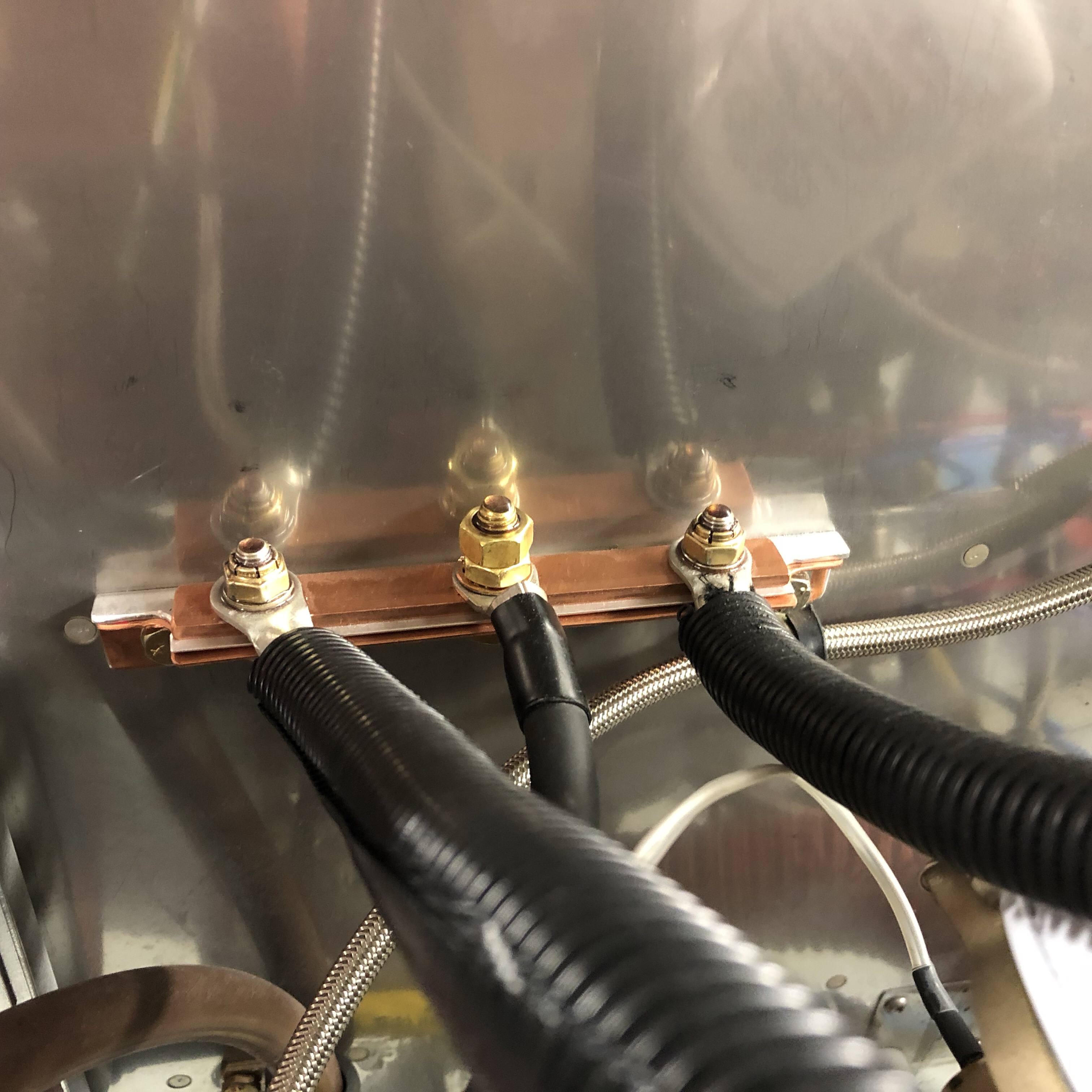

Added this ground point on the firewall. A bit of overkill but I think it is pretty clean, and allowed me to use the braided straps and attach them to the engine case.   Note the RV-14 instructions in the background – they are really helpful!



I used a 0.75″x0.75″ angle, and “wrapped” the inside with a bit of copper I had laying around, and used the standard copper bar on the top.
