Control cable routing on firewall

20 Feb 2011 Control cable routing on firewall

These are the drawings that Van’s provides for the control cables, but they include the caveat that you should check this for your engine before poking the holes.

How has this worked for everyone?

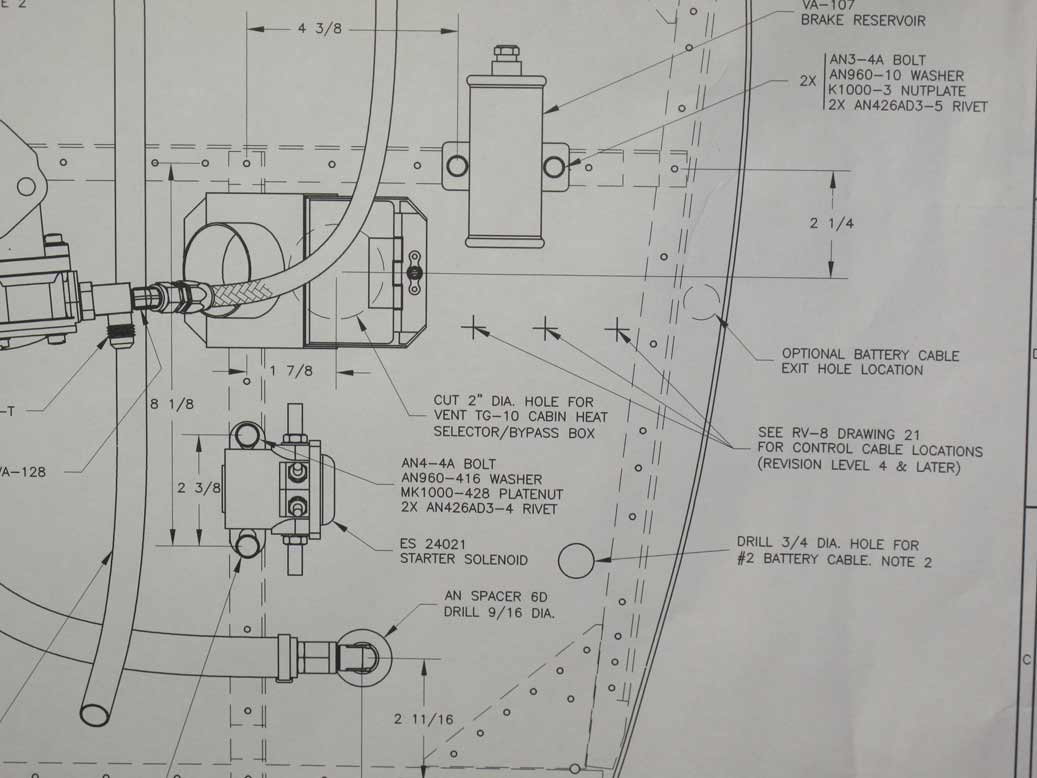

The drawing from an aft view:

20110220185504918_1_originalAnd from the front looking back:

20110220185504918_2_original
