Autopilot pitch servo installation

29 Aug 2018 Autopilot pitch servo installation

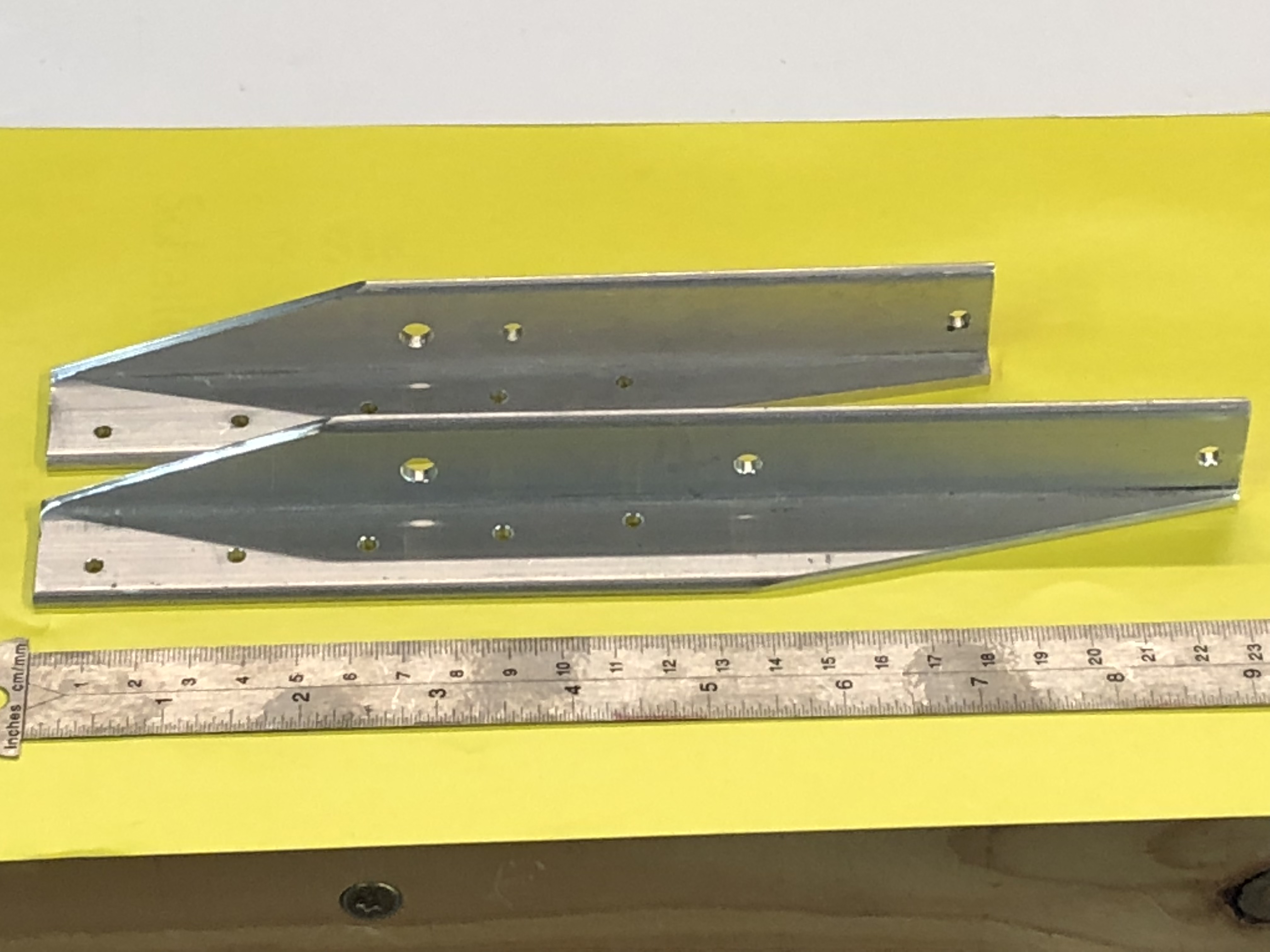

Here is a comparison between the “Standard” bracket, and the one I used.  I made it longer so that it would be easy to remove the bolts.

Got the pitch servo installed. Looks good. Slight deviation from the documentation that came with it. The Dynon documentation was very helpful. Thankfully these servos seem to all be made by the same company and are identical physically.
