AFP FM-200 Throttle body

23 Sep AFP FM-200 Throttle body

print

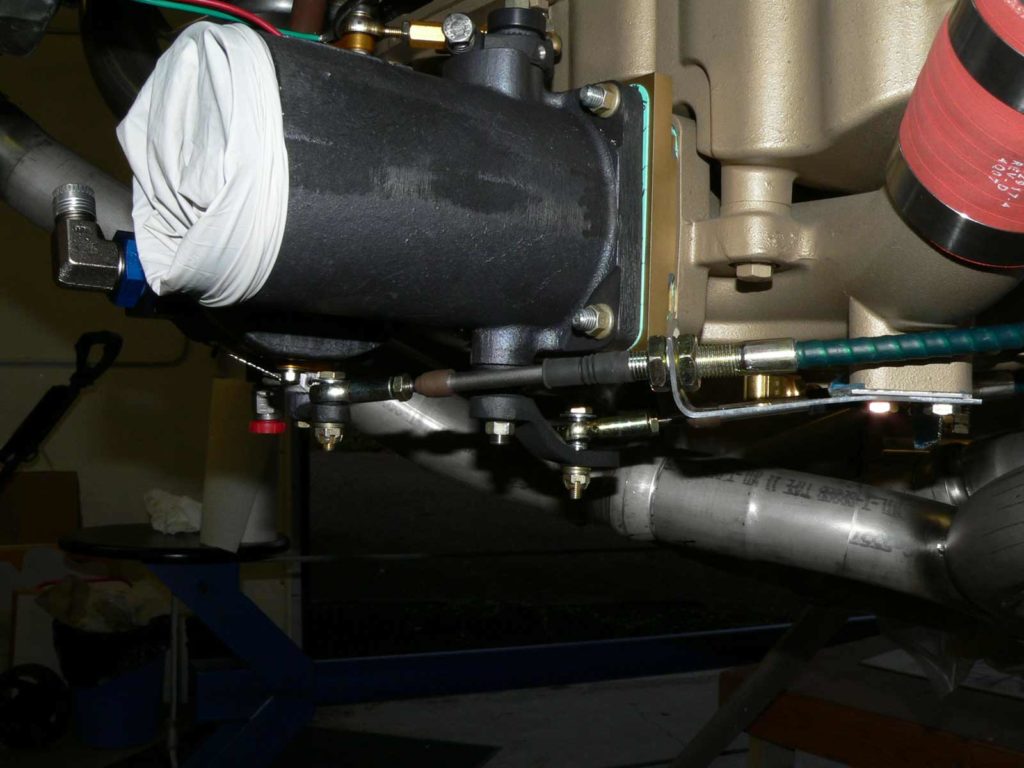

The brackets that come with the Van’s FWF kit do not work with the Superior cold air induction sump, so some brackets will need to be made.

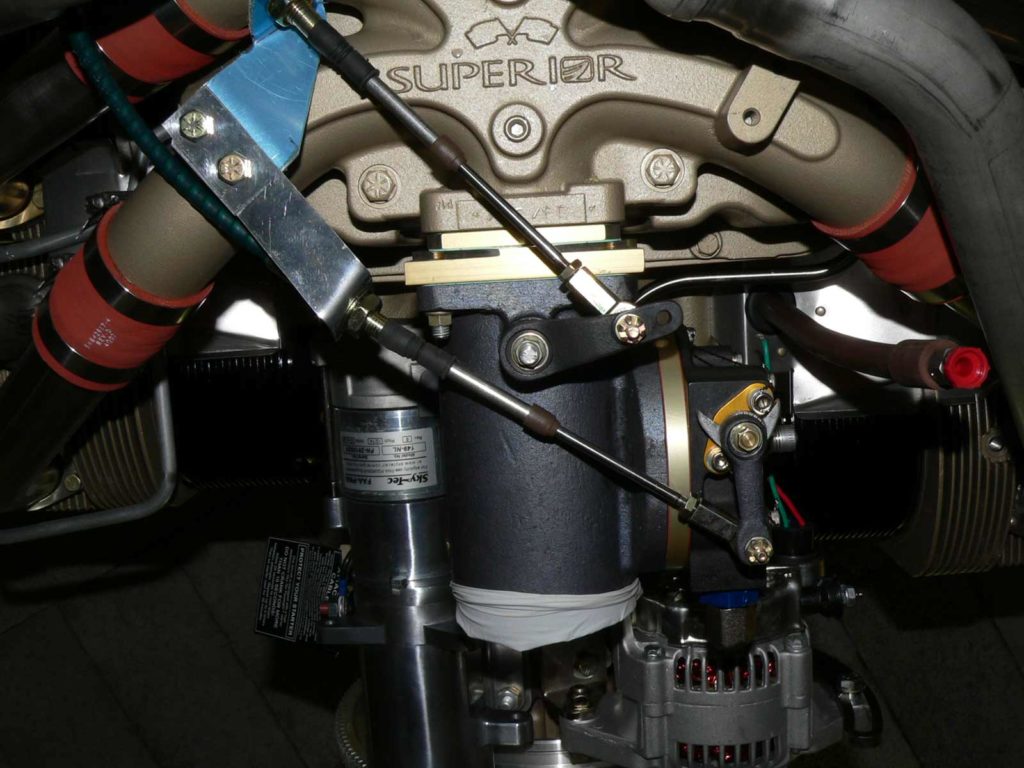

I’ve make some prototypes out of aluminum that seem to work pretty well, I now need to make them out of steel.

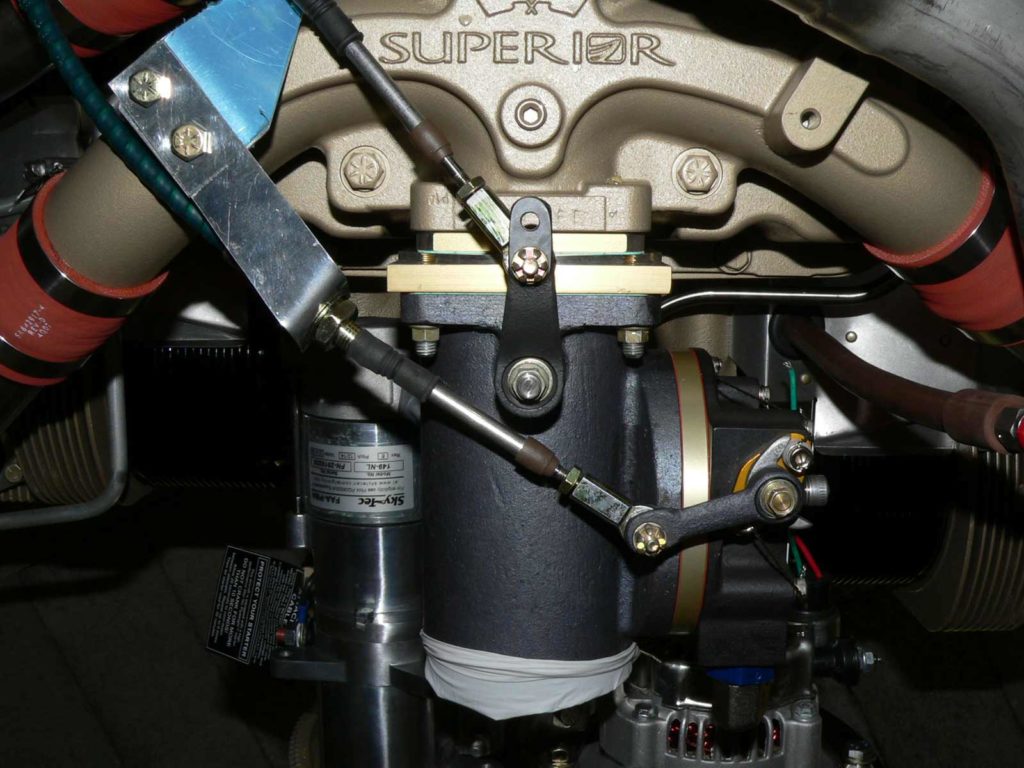

I will probably change the lever for the throttle to not have such a large dogleg – it could be straight and work fine, and the cable will be more horizontal, which seems to be good.

I checked for clearance with the cowl, and it does not seem to be a problem.

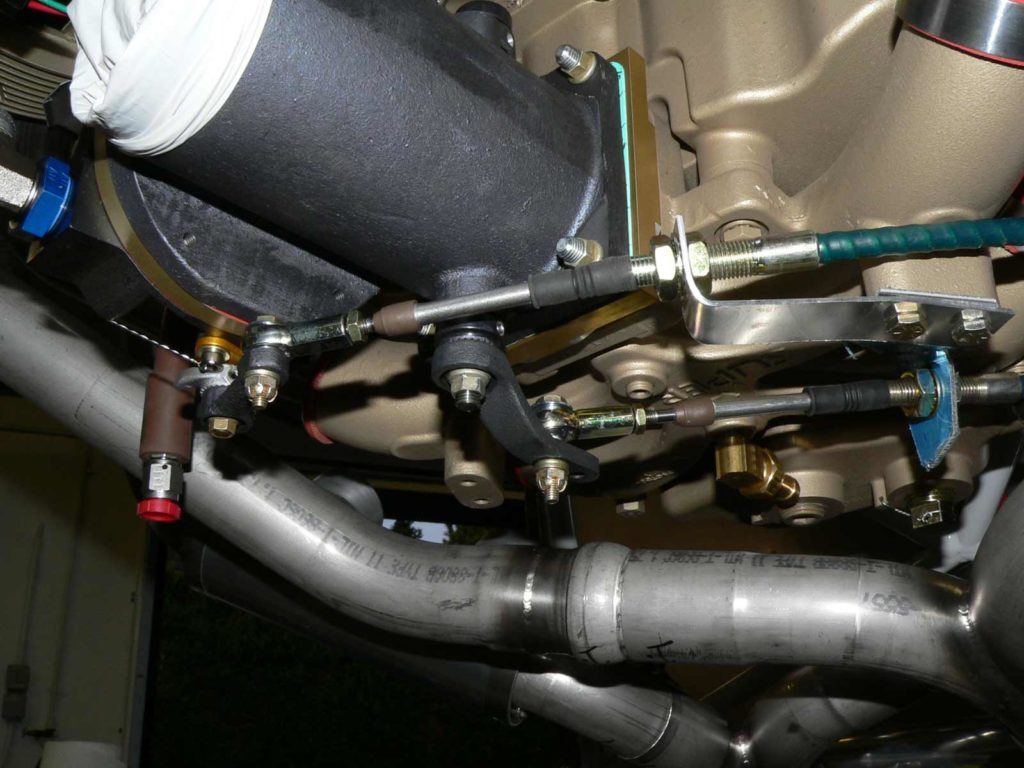

I’m generally happy with the routing of the control cables, but they will need some heat shields due to the proximity with the exhaust pipes.
